Screw conveyors produced in SLAV-CHAINS Ltd. provide for handling of all bulk granular and similar products. They are widely used for product distribution not only in agriculture but also for many industrial applications.





They are two types of screw conveyors: Troughed screw conveyor “SU” and Tubular screw conveyor “SO”

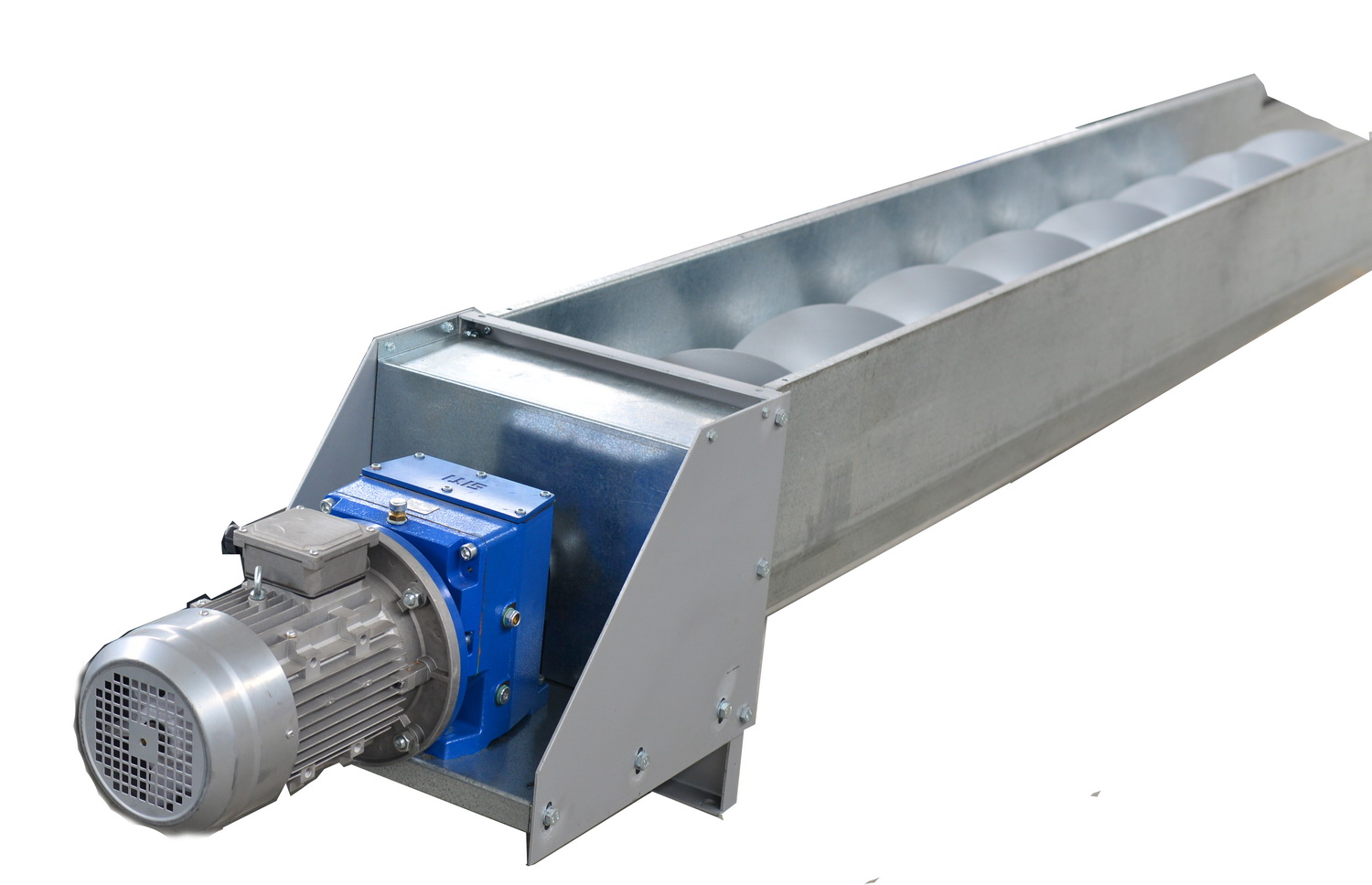

Troughed Screw Conveyor “SU” feature…

  • Trough is produced in galvanized or triple painted sheet metal.
  • Troughs are joined by flange witch provide strength and rigidity to the conveyors longer lengths too.
  • The top-cover is easy removable giving access for cleaning and maintenance.
  • Cold rolled screw flights different sizes depending with the capacity the conveyor.
  • Hang bearings on every 2m.
  • Powered by motor gearbox unit joined directly to the shaft or with chain and pinion drive.
TYP

Flight diameter

RPM

Capacity
М3 (max)

SU100

100

320

16

SU125

125

320

18

SU160

160

240

20

SU200

200

240

32

SU250

250

190

55

SU300

300

160

80

SU350

350

160

132

SU400

400

140

153



Tubular screw conveyors “SO” feature
  • Continuously welded tube galvanized or triple painted joined with flanges for best strength and rigidity.
  • Cold rolled screw flights different sizes depending with the capacity the conveyor
  • Powered by motor gearbox unit joined directly to the shaft or with chain and pinion drive.
  • The length is max. 15m.
  • Screw conveyors SO are divided in 6 different types depending the capacity:
TYP Flight diameter
mm
RPM Capacity
М3 (max)
SО100 100 320 16
SО125 125 320 18
SО160 160 240 20
SО200 200 240 32
SО250 250 190 55
SО300 300 160 80
