ACCESOARIES.jpg) ACCESOARIES

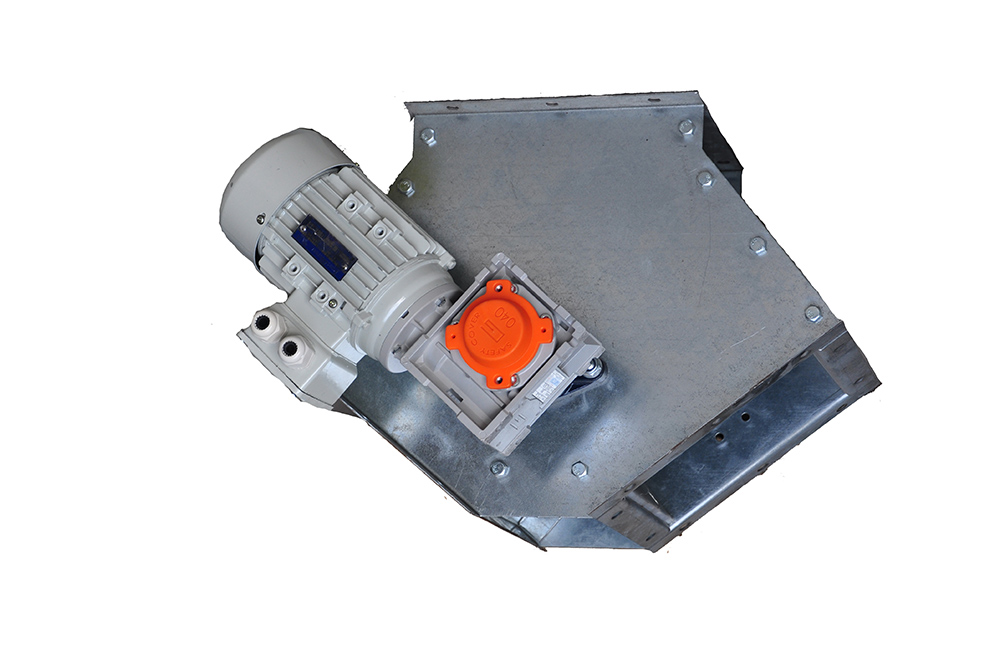

TWO - WAY VALVES
Two-way valves type 2LM and 2LN can be used for diverting the product flow.
Type 2LM valves are used where a vertical spout divides in two slopping spouts while type 2LN valves delivers the product flow in a sloping and a vertical spout. They are built in galvanized sheet metal.
 The two-way valves con be hand or automatically operated.
TYPE/dimensions
mm |
|
|
|
|
|
| 2LM |
100х100 |
120х120 |
160х160 |
200х200 |
250х250 |
| 2LN |
100х100 |
120х120 |
160х160 |
200х200 |
250х250 |
 THREE – WAY VALVES
The three – way valves changes the product flow in three directions. They are produced in galvanized sheet metal and can be manually, automatically or pneumatically operated.
TYPE/dimensions
mm |
|
|
|
|
|
| 3LM |
100х100 |
120х120 |
160х160 |
200х200 |
250х250 |

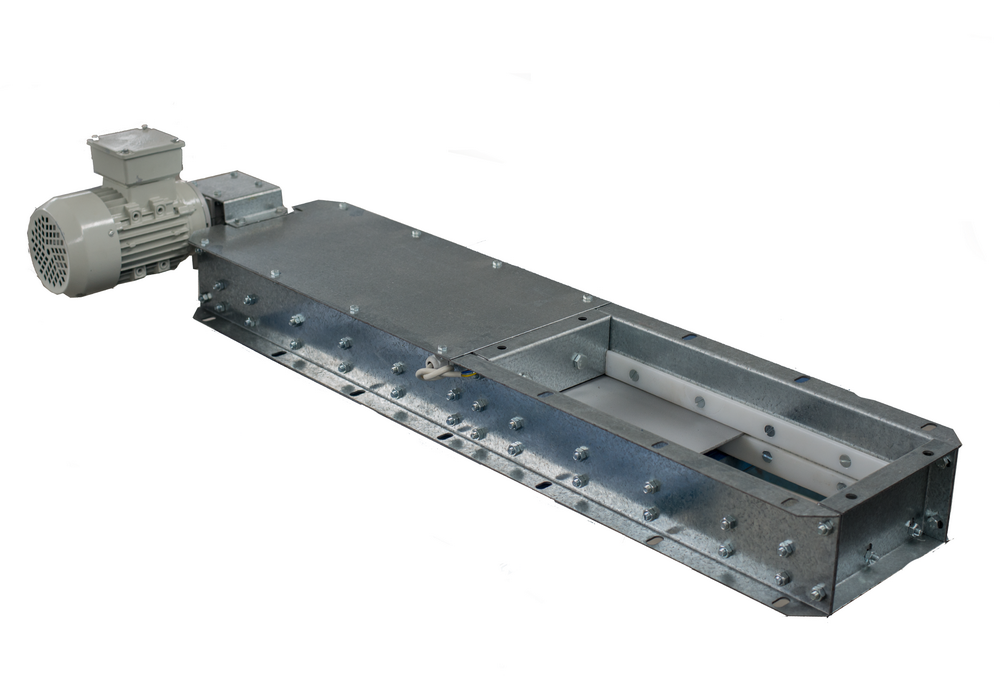

.png) SLIDING GATES
Sliding gates are produced in galvanized steel. They can be longitudinal slides “LS” and across trough slides “ATS”. Sliding gates can be manually and automatically operated.
TYPE/dimensions
mm |
|
|
|
|
|
| LS |
195x400 |
220x500 |
250х550 |
320х650 |
350х750 |
| ATS |
195x400 |
220x500 |
250х550 |
320х650 |
350х750 |
|
|
|
|
|
|
