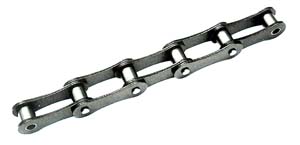

CHAINS DIN8181CHAINS 8181
.jpg) .jpg)
| DIN ISO NO. |
ANSI No. |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plates depth |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
| P |
d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
Q min |
Q0 |
q |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
KN |
KN |
kg/m |
| 208A |
2040 |
25.4 |
7.95 |
7.85 |
3.96 |
16.6 |
18.8 |
12.0 |
14.1 |
16.3 |
0.42 |
| 208B |
- |
25.4 |
8.51 |
7.75 |
4.45 |
16.7 |
18.2 |
11.8 |
18.0 |
19.5 |
0.45 |
| 210A |
2050 |
31.75 |
10.16 |
9.40 |
5.08 |
20.7 |
23.3 |
15.0 |
22.0 |
26.0 |
0.73 |
| 210B |
- |
31.75 |
10.16 |
9.65 |
5.08 |
19.5 |
20.9 |
14.7 |
22.4 |
26.5 |
0.65 |
| 212A |
2060 |
38.1 |
11.90 |
12.57 |
5.94 |
25.9 |
28.3 |
18.0 |
31.8 |
33.6 |
1.02 |
| 212B |
- |
38.1 |
12.07 |
11.68 |
5.72 |
22.5 |
25.2 |
16.0 |
29.0 |
32.2 |
0.76 |
| 216A |
2080 |
50.8 |
15.88 |
15.75 |
7.92 |
32.7 |
36.5 |
24.0 |
56.7 |
65.0 |
1.70 |
| 216AH |
- |
50.8 |
15.88 |
15.75 |
7.92 |
36.2 |
39.4 |
24.0 |
56.7 |
68.8 |
2.17 |
| 216B |
- |
50.8 |
15.88 |
17.02 |
8.28 |
36.1 |
39.1 |
21.0 |
60.0 |
70.8 |
1.75 |
| 220A |
2100 |
63.5 |
19.05 |
18.90 |
9.53 |
40.4 |
44.7 |
30.0 |
88.5 |
101.8 |
2.55 |
| 220B |
- |
63.5 |
19.05 |
19.56 |
10.19 |
41.3 |
45.0 |
26.4 |
95.0 |
101.5 |
2.62 |
| 224A |
2120 |
76.2 |
22.23 |
25.22 |
11.1 |
50.3 |
54.3 |
35.7 |
127.0 |
147.1 |
4.06 |
| 224B |
- |
76.2 |
25.4 |
25.4 |
14.63 |
53.4 |
57.8 |
33.2 |
160.0 |
174.0 |
4.70 |
| 228B |
- |
88.9 |
27.94 |
30.99 |
15.90 |
65.1 |
69.5 |
36.7 |
200.0 |
214.4 |
6.23 |
| 232B |
- |
101.6 |
29.21 |
30.99 |
17.81 |
66.0 |
71.0 |
42.0 |
250.0 |
267.5 |
6.72 |
|
|
|
|
|
|
