CHAINS DIN8187

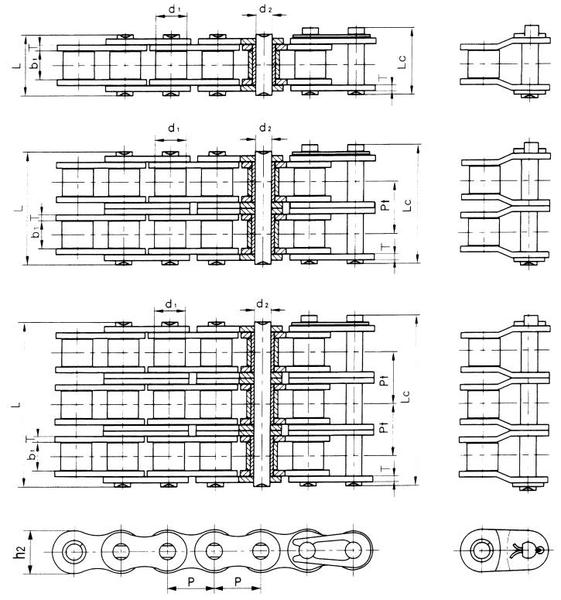

TRANSMISSION ROLLER CHAINS ISO 606, DIN 8187

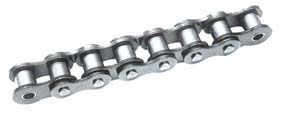

Simplex roller chains
DIN ISO NO.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Plates depth
Ultimate tensile strength
Average tensile strength
Weight per meter
P
d
1
max
b
1
min
d
2
max
L max
Lc max
h
2
max
Q min
Q
0
q
mm
mm
Mm
mm
mm
mm
mm
KN
KN
kg/m
04B-1
6.0
4.00
2.80
1.85
6.8
7.8
5.0
3.0
3.4
0.11
05B-1
8.0
5.00
3.00
2.31
8.0
8.9
7.11
5.0
5.7
0.20
*06B-1
9.525
6.35
5.72
3.28
13.20
14.2
8.2
9.0
10.2
0.41
08B-1
12.7
8.51
7.75
4.45
16.7
18.0
11.8
18.0
19.1
0.69
10B-1
15.875
10.16
9.65
5.08
19.60
21.0
14.7
22.4
26.5
0.93
12B-1
19.05
12.07
11.68
5.72
22.5
24.0
16.10
29.0
32.2
1.15
16B-1
25.4
15.88
17.02
8.28
36.0
37.2
21.05
60.0
70.4
2.71
20B-1
31.75
19.05
19.56
10.19
41.1
44.7
26.31
95.0
101.5
3.70
24B-1
38.1
25.40
25.40
14.63
53.3
57.5
33.30
160.0
174.0
7.10
28B-1
44.45
27.94
30.99
15.90
64.8
69.5
36.9
200.0
213.9
8.50
32B-1
50.8
29.21
30.99
17.81
66.2
71.0
42.1
250.0
267.5
10.25
40B-1
63.5
39.37
38.10
22.89
82.2
89.2
52.96
355.0
379.9
16.35
48B-1
76.2
48.26
45.72
29.24
99.1
107.0
63.8
560.0
599.0
25.00

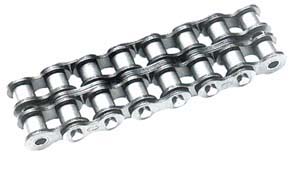

Duplex roller chains
DIN ISO NO.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Plates depth
Transverse pitch
Ultimate tensile strength
Average tensile strength
Weight per meter
P
d
1
max
b
1
min
D
2
max
L max
Lc max
h
2
max
P
t
Q min
Q
0
q
mm
mm
mm
mm
mm
mm
mm
mm
KN
KN
kg/m
05B-2
8.0
5.00
3.00
2.31
13.9
14.5
7.11
5.64
7.8
10.4
0.33
*06B-2
9.525
6.35
5.72
3.28
23.5
24.5
8.2
10.24
16.9
17.7
0.77
08B-2
12.7
8.51
7.75
4.45
31.0
32.10
11.8
13.92
32.0
37.3
1.34
10B-2
15.875
10.16
9.65
5.08
36.2
37.5
14.7
16.59
44.5
54.2
1.84
12B-2
19.05
12.07
11.68
5.72
42.1
43.6
16.10
19.46
57.8
65.7
2.31
16B-2
25.4
15.88
17.02
8.28
67.5
69.1
21.05
31.88
106.0
124.6
5.42
20B-2
31.75
19.05
19.56
10.19
77.2
80.9
26.3
36.45
170.0
210.0
7.20
24B-2
38.1
25.40
25.40
14.63
101.6
105.9
33.3
48.36
280.0
304.5
13.40
28B-2
44.45
27.94
30.99
15.90
124.1
129.1
36.9
59.56
360.0
385.3
16.60
32B-2
50.8
29.21
30.99
17.81
124.6
129.6
42.1
58.55
450.0
477.0
21.00
40B-2
63.5
39.37
38.10
22.89
154.5
161.5
52.96
72.29
630.0
667.5
32.00
48B-2
76.2
48.26
45.72
29.24
190.4
198.2
63.8
91.21
1000.0
1060.2
50.00

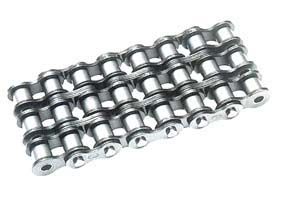

Triplex roller chains
DIN ISO NO.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Plates depth
Transverse pitch
Ultimate tensile strength
Average tensile strength
Weight per meter
P
d
1
max
b
1
min
d
2
max
L max
Lc max
h
2
max
P
t
Q min
Q
0
q
mm
mm
mm
mm
mm
mm
mm
mm
KN
KN
kg/m
05B-3
8.0
5.00
3.00
2.31
19.5
20.2
7.11
5.64
11.1
13.6
0.48
*06B-3
9.525
6.35
5.72
3.28
33.8
33.90
8.2
10.24
24.9
29.8
1.16
08B-3
12.7
8.51
7.75
4.45
44.9
46.05
11.8
13.92
47.5
50.1
2.03
10B-3
15.875
10.16
9.65
5.08
52.8
54.1
14.7
16.59
66.7
79.5
2.77
12B-3
19.05
12.07
11.68
5.72
61.65
63.2
16.10
19.46
86.7
101.9
3.46
16B-3
25.4
15.88
17.02
8.28
99.40
101.0
21.05
31.88
160.0
188.0
8.13
20B-3
31.75
19.05
19.56
10.19
114.2
117.9
26.3
36.45
250.0
266.4
10.82
24B-3
38.1
25.40
25.40
14.63
105.1
154.6
33.2
48.36
425.0
462.2
20.10
28B-3
44.45
27.94
30.99
15.90
184.2
188.7
36.9
59.56
530.0
561.9
24.92
32B-1
50.8
29.21
30.99
17.81
183.2
188.2
42.1
58.55
670.0
710.2
31.56
40B-3
63.5
39.37
38.10
22.89
226.8
233.8
52.96
72.29
950.0
1007.2
48.10
48B-3
76.2
48.26
45.72
29.24
281.6
289.4
63.8
91.21
1500.0
1590.0
75.00
